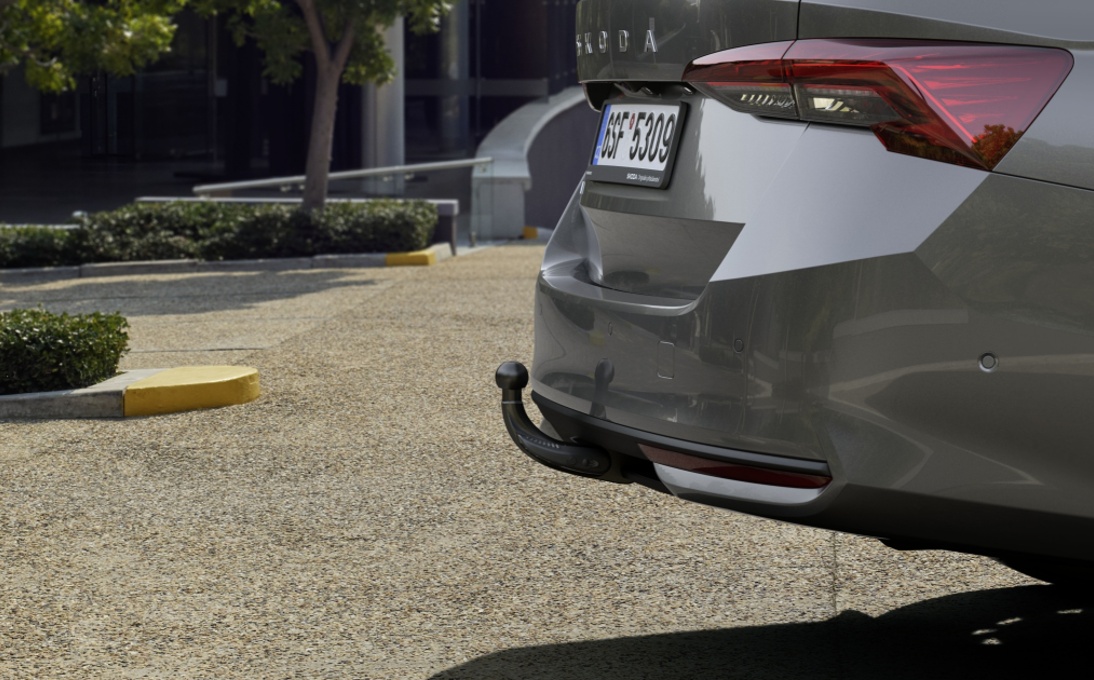

Towbar detachable
The tow bar is another of the practical extras from the Škoda Genuine Accessories range that increase the utility of the vehicle.
Manufactured from high-quality materials, it has undergone rigorous te…
Read more
The tow bar is another of the practical extras from the Škoda Genuine Accessories range that increase the utility of the vehicle.
Manufactured from high-quality materials, it has undergone rigorous testing for strength and resistance to corrosion, as well as load tests.
The tow bar complies with homologation E8 55R-01 55879 + ADR62/02 + AS4177-2004 and all international regulations. Its electrical wiring has been tested successfully for electromagnetic compatibility.
Thanks to the simple, automatic mechanism for fitting and removing the ball hitch, no tools are needed meaning that it is much simpler to meet the legal requirements for removing the ball hitch when the trailer is uncoupled.
When you are driving abroad, the country-specific legal regulations must be followed at all times if you have not attached a trailer to the tow bar fitted to your vehicle.
Retrofitting a tow bar to your vehicle increases the demand on its cooling system.
As a result, depending on the equipment fitted to the vehicle, the cooling system components will need to be replaced in accordance with the information either held by workshop technicians in authorised Škoda Auto specialist service centres.
The electrical wiring set is not included and must be ordered separately:
– for vehicles set up for a tow bar 5E3055202B (contains control unit 5H0907383C).
– for vehicles not set up for a tow bar 5E3055202B + 5E3055204B
For vehicles with UN.ECE with PR NI1, NI7, NI8 a NI9 must be ordered:
- for vehicles set up for a tow bar 5E3055202C (contains control unit 5H0907383D).
– for vehicles not set up for a tow bar 5E3055202C + 5E3055204B
For Octavia Combi (IV) model without a tow bar preparation (does not apply to Octavia Scout (IV)) need to be ordered:
- difusor (1pcs) 5E6807521.
Attention: when replacing the difusor on vehicles with a virtual pedal (PR - 4E6), it is necessary to order separately:
- antenna for a virtual pedal 5E3962239
- control unit holder 3G0962283A
(For assembly, proceed according to the workshop manual).
Technical specifications
- Product code
- 5E3092155B
- Material
- Quality steel
- Dimensions
- 1040 mm x 620 mm x 220 mm
- Content of set
- Holder for the tow bar, bolt 4 pcs, tow hitch, key to tow hitch control lever lock 2 pcs, ball cover, mounting recess cover cap, fitting instructions, user manual
- Warning
- This set is dedicated only for vehicles exported to Australia (include Sport packet).
- Weight
- 17 kg
Designed for:
Notice
Limitations:
Not suitable for
- Octavia G-TEC (CNG),
- Octavia RS
- Octavia iV and Octavia RS iV
- vehicles with mHEV technology without a tow bar preparation.
This part is not possible to fit it to hybrid vehicles Octavia iV (PHEV).
Cannot be retrofitted on vehicles with motorization 1,4 TSI 110kW.
Cannot be retrofitted on 1.5 TSI 110kW vehicles without preparation for tow bar:
- Combi produced from CW 05/2020 until the end of CW 43/2020 and from CW 48/2020 until the end of CW 11/2021.
- Limo produced from CW 10/2020 until end of CW 43/2020 and from CW 48/2020 until the end CW 11/2021.
For vehicles without tow bar preparation:
- 1.0 TSI/81 kW
- 1,5 TSI produced from CW 44/2020 until the end of CW 47/2020
– removing the aerodynamic exhaust cover on the underbody of the vehicles is necessary per the service manual.
If the specified procedure is not followed, there is arisk of damaging the fuel tank!
Maximum towing capacity – the weight limit for the braked/unbraked trailer is stated in the vehicle’s documents.
D-value – 11.3 kN
Maximum vertical load – 80 kg
Maximum vertical load for accessories – 75 kg
The values always depend on the technical specifications of the vehicle in question.
