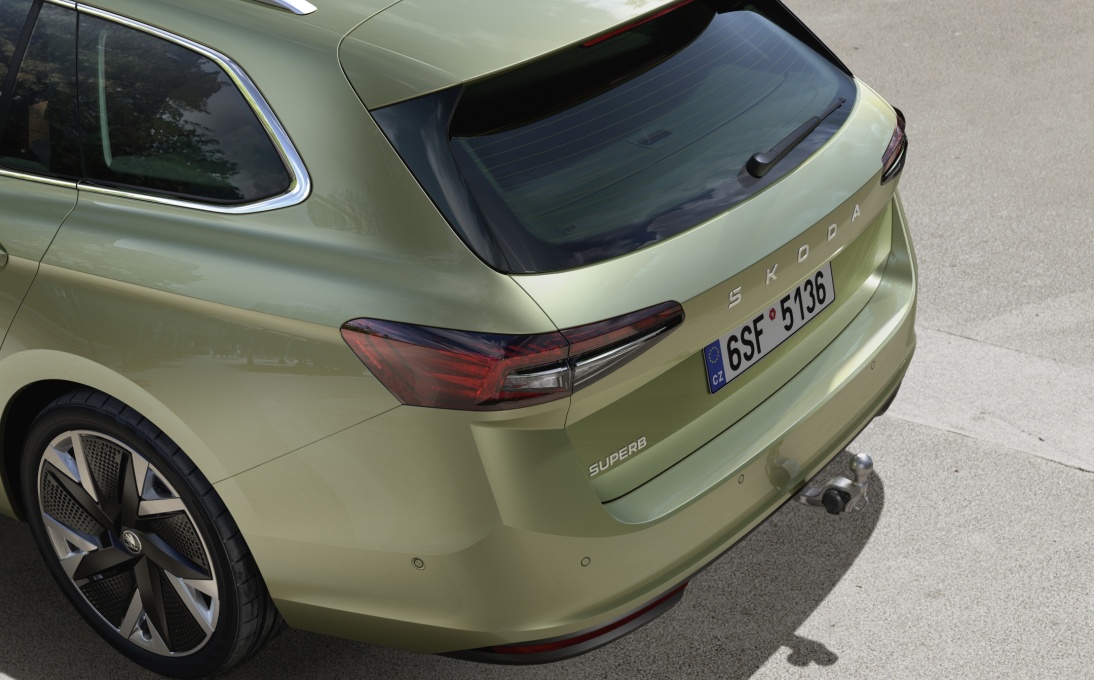

Tow bar Superb IV
The towbar from the Škoda Original Accessories range is made of highquality materials and has been subjected to stress tests and rigorous tests for strength and corrosion resistance. The towbar complie… Read more
The towbar from the Škoda Original Accessories range is made of highquality materials and has been subjected to stress tests and rigorous tests for strength and corrosion resistance. The towbar complies with homologation E13*55R-02*4831 and all Czech and international regulations.
A simple automatic mechanism ensures that the towing arm is folded into the functional position and then folded back under the bumper when not in operation.
This towing device is designed for vehicles with PR number:
1. ICE (0K0)/(0K4) mHEV, with preparation for towing device (1M5), with raised chassis (UC7) Hochstand, for vehicles with UN.ECE (NI1/NI7/NI8/NI9) and with weight range for rear axle (0YH/0YJ/0YK/0YL)
or
2. with PHEVdrive (0K3) with preparation for tow bar (1M5) and with standard Sport chassis (1JA)/DCC (1JP), for vehicles with UN.ECE (NI1/NI7/NI8/NI9)
For installation, it is necessary to order from the Škoda Original Parts catalogue:
- Electrical installation kit 5E3055204A
- Adapter 3P0055202D
For Superb Combi IV
- Bumper mounting rail 3J0807863A
For the Superb Limo IV
- Plastic reinforcement 3P3 867 730A APK
-Glue D428000 M2
We recommend all related assembly work to be carried out by authorized Škoda Auto partners.
Notice for vehicles (Superb IV) with PHEVdrive:
Due to the specific construction of vehicles equipped with a high-voltage battery, we recommend using only tow bar equipment from the Skoda Original Accessories range, where Skoda Auto a.s. guarantees its safety, reliability, and suitability for this type of vehicle.
Improperly installed or unsuitable tow bar equipment may damage the high-voltage components of the vehicle in the event of an accident and thus worsen the consequences of the accident or cause fatal injury.
Associated products
Towbar adapter - from 13-pin to 7-pin socket EAZ000001A
Technical specifications
- Product code
- 3P0092160A
- Material
- Quality steel
- Dimensions
- 1120 x 620 x 220 mm
- Content of set
- Belka urządzenia holowniczego, śruba (4 szt.), jednostka sterująca 5H2 907 383D, nakrętka rozprężna (2 szt.), przełącznik, osłona przełącznika, instrukcja montażu
- Professional installation recommended
- Yes
- Restrictions
- Only for vehicles produced until CW 27/2025. Cannot be retrofitted to vehicles without preparation with PR number 1D0. Can not be fitted on vehicles exported to Australia.
- Notice
- Technical specifications: Maximum towing weight - The weight limit for the (braked/unbraked) trailer is specified in the vehicle‘s technical certificate. Theoretical reference force (Dc - Wert) - 11,3 kN. Maximum vertical load: When using a trailer - 90 kg. When using accessories - 75 kg. Always depends on the technical parameters of the specific vehicle.
- Weight
- 25 kg
