Tow bar Scala
The tow bar from the Škoda Genuine Accessories range is another of our practical accessories that increase the utility of the vehicle. Manufactured from high-quality materials, the tow bar has undergon… Read more
The tow bar from the Škoda Genuine Accessories range is another of our practical accessories that increase the utility of the vehicle. Manufactured from high-quality materials, the tow bar has undergone load tests as well as rigorous testing for strength and resistance to corrosion.
It complies with homologation and all Czech and international regulations.

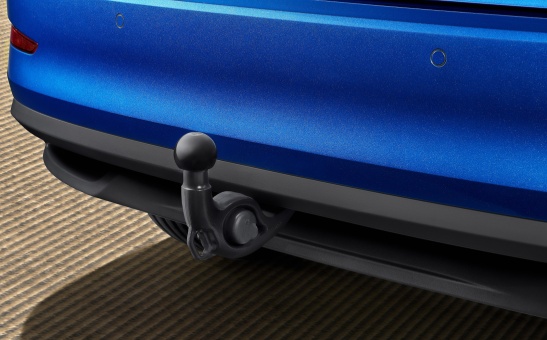

It features a simple, automatic mechanism that swivels the ball hitch in and out and when swivelled in, the ball hitch is hidden below the bumper so that it does not spoil the vehicle's aesthetics.
Please refer to the Owner's Manual for detailed instructions on how to use the ball hitch.
This tow bar is designed for vehicles with PR (UN.ECE) (NI1/NI7/NI8/NI9) in equipment:
1. with preparation for tow bar (1D7)
2. without preparation for tow bar (1D0)
For the fitting, the following items must also be ordered from the Škoda Original Components catalogue:
- for vehicles without a tow bar preparation (1D0):
- Wiring harness 657055204
- for vehicles not equipped with a control unit for the shock absorbers (2H0/2H5):
- Cover for securing the control unit 654971362
Please note: Before the tow bar is fitted, the reducing agent tank must be removed (SCR diesel engines, AKF petrol engines). This is located under the rear right wheel cover.
Technical specifications
- Product code
- 657092160F
- Material
- Quality steel
- Content of set
- Towbar with wiring, bolts (4 pcs), control unit 5H2907383D, switch cover, switch, fitting instructions
- Professional installation recommended
- Yes
- Restrictions
- Not applicable to G-TEC (CNG) vehicles and vehicles exported to Australia. Can be fitted on vehicles manufactured until CW 27/2025.
- Notice
- The maximum towable weight of the (braked or unbraked) trailer as well as the maximum vertical load on the ball pin are specified in the vehicle‘s technical certificate. Maximum vertical load on the ball pin: 75 kg.
- Weight
- 23,5 kg
