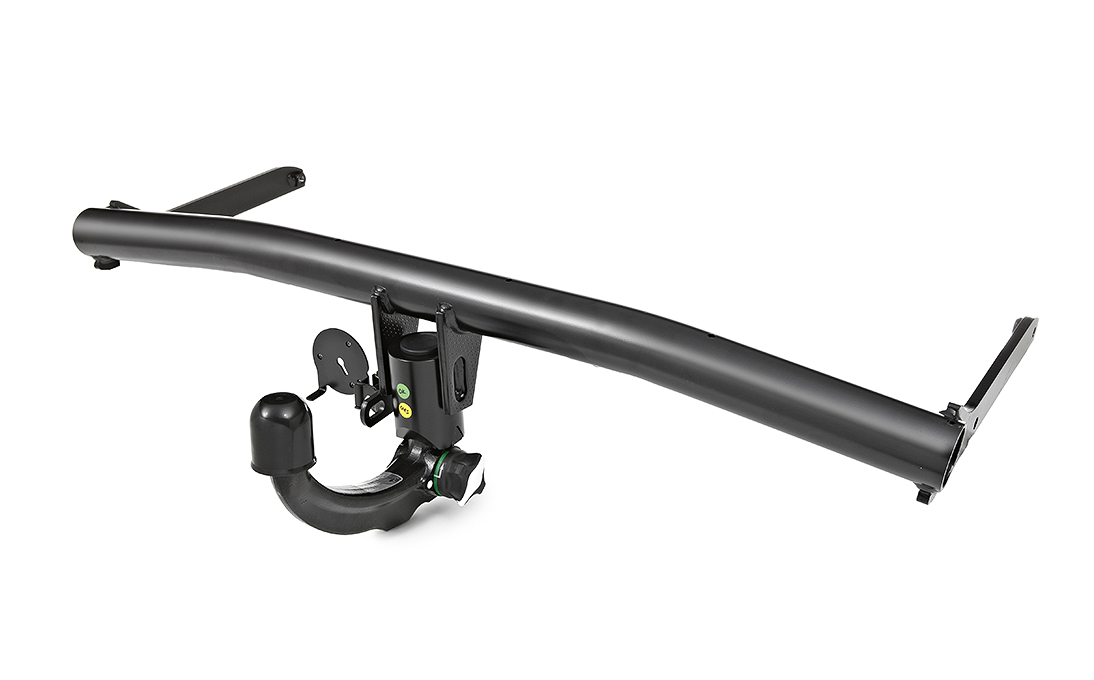

Tow bar Rapid Spaceback
To increase already high utility of your Škoda Rapid, you can order removable tow bar with folding socket holder from Škoda Genuine Accessories. This tow bar was specifically designed for this vehicle.… Read more
To increase already high utility of your Škoda Rapid, you can order removable tow bar with folding socket holder from Škoda Genuine Accessories. This tow bar was specifically designed for this vehicle. Maximum vertical loading capacity is 1 200 kg for braked trailer and 630 kg for unbraked one. The tow bar has been manufactured according to approved documentation and complies with ECE E1 55R-012196.
For installation, the following parts from Škoda Genuine Accessories need to be ordered:
Wiring harness set for cars with tow bar preparation:
- until CW 22/2015 use 5JJ 055 204 (contains control unit 1K0 907 383F)
- from CW 22/2015 use 5JJ 055 202B (contains control unit 5H0 907 383C)
Wiring harness set for cars without tow bar preparation:
- until CW 22/2015 use 5JJ 055 204 + 5JJ 055 204A
- from CW 22/2015 use 5JJ 055 202B + 5JA 055 204B
Frame for the bumper aperture 5JJ 807 518
Notification:
This part is not compatible with the electronics of vehicles produced in Russia (Kaluga, Nizhny Novgorod).
Technical specifications
- Product code
- 5JJ092155
- Material
- Metal
- Content of set
- Tow bar, fitting material.
- Professional installation recommended
- Yes
- Warning
- Due to the complexity of the work procedure and the preservation of all warranties for your car, we recommend that you carry out the installation at authorized Škoda Auto service partners in accordance with the approved installation instructions. Contact your Škoda Auto partner for installation information.
- Restrictions
- Not for model Monte Carlo / Scout and not with the diffuzer JJ071610 or 5JJ071610B.
- Notice
- Maximum vertical load on the ball joint: 50 kg.
- Weight
- 16,9 kg
