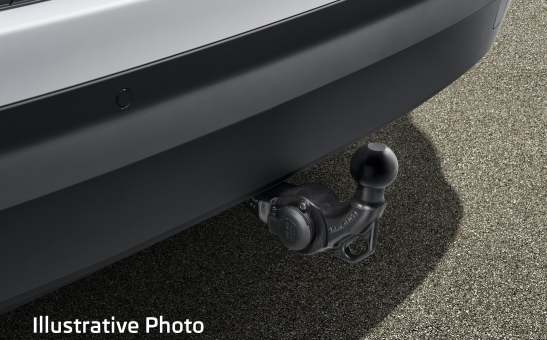

Tow bar Kodiaq I
Manufactured from high-quality materials, the tow bar has undergone load tests as well as rigorous testing for strength and resistance to corrosion. The tow bar complies with homologation E1 55R-01 260… Read more
Manufactured from high-quality materials, the tow bar has undergone load tests as well as rigorous testing for strength and resistance to corrosion. The tow bar complies with homologation E1 55R-01 2601 and all Czech and international regulations. Please refer to the Owner‘s Manual for detailed instructions on how to use the ball hitch. Retrofitting a tow bar to your vehicle increases the demand on its cooling system. As a result, depending on the equipment fitted to the vehicle, the cooling system components will need to be replaced in accordance with the information either held by workshop technicians in authorised Škoda Auto specialist service centres.
This component is compatible with the electronic system in vehicles manufactured in Russia (Kaluga, Nizhny Novgorod) from CW 51/2019.
For fitting, the following items must also be ordered from the ŠKODA Original Components catalogue:
- Aerial for the virtual pedal (if fitted) 565962235
- Cover for switch – for five-seater version 565 868 345B 9B9
- Cover for switch – for seven-seater version 565 868 345 9B9
- Support – for seven-seater version 565867993
- Double-sided adhesive tape D 438P11 M4
- Activator D 822150 A1
- Adhesive D 001210 M2
- for vehicles not set up for a tow bar, additionally:
- Wiring harness for vehicles not set up for a tow bar 565971658G
- for vehicles produced from CW 27/2018 without a tow bar preparation and with a heated steering wheel, additionally:
- Wiring harness 57A971658G
Technical specifications
- Product code
- 565092160P
- Color
- Black
- Material
- Quality steel
- Dimensions
- 1390 x 690 x 250 mm
- Content of set
- Complete tow bar set with electroinstallation, control unit (5H2.907.383C), switch, frame, connecting materials, fitting instructions
- Professional installation recommended
- Yes
- Usage
- See the vehicle‘s Owner‘s Manual for the maximum trailing load (braked/unbraked) and maximum bearing load. Maximum vertical load: 100 kg. Maximum vertical load for accessories: 75 kg.
- Restrictions
- Exclusively for the basic models Škoda Kodiaq I with either left- or right-hand drive, manufactured from CW 38/2018.
- Notice
- Due to the complex nature of the work required, as well as the subsequent activation of the tow bar, fitting must be carried out exclusively by an authorised Škoda Auto service partner.
- Show more
Designed for:
Notice
It cannot be used for seven-seater vehicles that have TDI engines and manual transmission MQ.
For vehicles:
- Kodiaq 2,0 147 kW TDi produced from CW 39/2020
- Kodiaq RS 2,0 176 kW TDi from starts of production
- can be fitted only if they have a tow bar preparation from the production line.
- Cannot be retrofitted to Kodiaq FL vehicles without tow bar preparation.
- It cannot be used for vehicles exported to Australia.
To verify compatibility with your vehicle and installation options, please first contact an authorized Škoda service partner or our Infoline with the vehicle's VIN code.
