Tow bar Karoq
The tow bar from the Škoda Genuine Accessories range is manufactured from high-quality materials and has undergone load tests as well as rigorous testing for strength and resistance to corrosion. It co… Read more
The tow bar from the Škoda Genuine Accessories range is manufactured from high-quality materials and has undergone load tests as well as rigorous testing for strength and resistance to corrosion. It complies with homologation and all Czech and international regulations.
Features an automatic mechanism that swivels the ball hitch in and out, please refer to the Owner's Manual for detailed instructions.
This tow bar is designed for vehicles with preparation for tow bar (1D7/1D8), UN.ECE (NI1/NI7/NI8/NI9) in equipment:
1. fixed rear seats (3NU/3NZ)
or
2.Varioflex (5KP)
For fitting must be ordered from the Škoda Genuine catalogue:
- for vehicles with standard rear seats (3NU/3NZ):
- Control unit 5E3055713
- Switch 3G0 959 511A WHS
- Switch cover 5G0 868 345 81U
- Support 575868784
- Adhesive D 428 000 M2
- for vehicles with Varioflex rear seats (5KP):
- Control unit 5E3055713
- Switch 565 959 511 WHS
- Switch cover 565 868 345 9B9
- Support 57A868784
- Adhesive D 428 000 M2
Technical specifications
- Product code
- 57A092160AB
- Material
- Quality steel
- Dimensions
- 1150 x 540 x 190 mm
- Content of set
- Towbar with wiring, bolts, expanding nuts, bolts for attaching the control unit, fitting instructions
- Professional installation recommended
- Yes
- Warning
- Technical specifications: Maximum vertical load: 90 kg. Maximum vertical load when using accessories: 75 kg. The maximum tow weight of the (braked/unbraked) trailer as well as the maximum vertical load on the coupling pin are specified in the vehicle's technical certificate.
- Restrictions
- Not applicable for vehicles without preparation for a towbar - PR 1D0. Not applicable for vehicles exported to Australia. Can be fitted on vehicles manufactured from CW 28/2025.
- Weight
- 25 kg

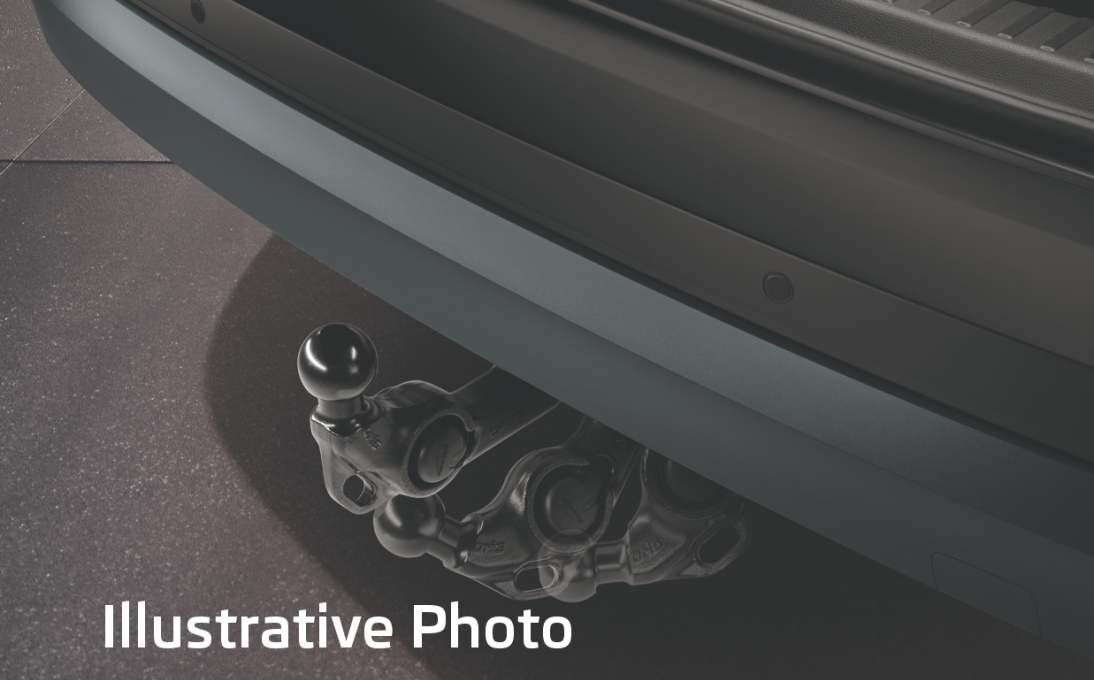

- The photo is illustrative only
- Yes
