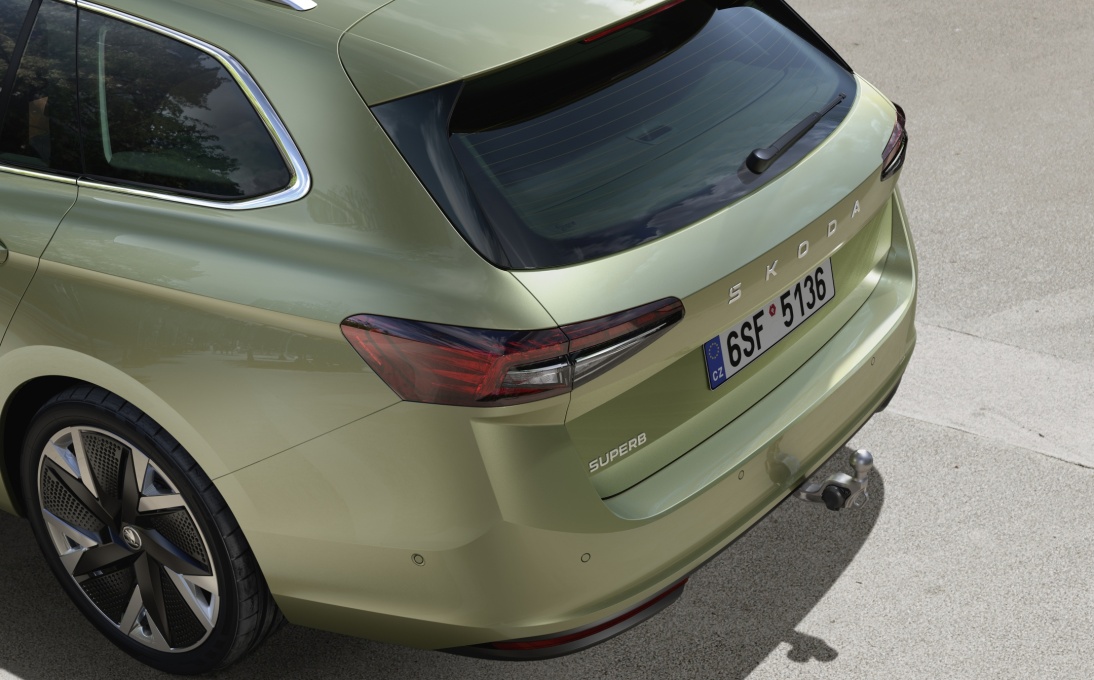

Tow bar foldable Superb IV
The towbar from the Škoda Genuine Accessories range is made of high-quality materials and has been subjected to stress tests and rigorous tests for strength and corrosion resistance. The towbar complie… Read more
The towbar from the Škoda Genuine Accessories range is made of high-quality materials and has been subjected to stress tests and rigorous tests for strength and corrosion resistance. The towbar complies with homologation and all Czech and international regulations. A simple automatic mechanism ensures that the towing arm is folded into the functional position and then folded back under the bumper when not in operation.
This towing device is designed for vehicles with preparation for tow bar (1M5), with PR number UN.ECE (NI1/NI7/NI8/NI9) in equipment:
1. ICE (0K0)/ (0K4) mHEV with raised chassis (UC7) Hochstand and with weight range for rear axle (0YH/0YJ/0YK/0YL)
or
2. with PHEV drive (0K3) with standard Sport chassis (1JA) / DCC (1JP)
For installation, it is necessary to order from the Škoda Original Parts catalogue:
- Control unit 5E3055713
- Electrical installation kit 5E3055204A (only for vehicles manufactured up to CW47/2025)
- Adapter 3P0055202D (only for vehicles manufactured up to CW 47/2025)
For Superb IV Combi
- Bumper mounting rail 3J0807863A
For the Superb IV Limo
- Plastic reinforcement 3P3867730A APK
- Switch cover 5G0868345 4PK
- Glue D428000 M2
We recommend all related assembly work to be carried out by authorized Škoda Auto partners.
Technical specifications
- Product code
- 3P0092160H
- Material
- Quality steel
- Dimensions
- 1120 x 620 x 220 mm
- Content of set
- Towing bracket, bolt (4 pcs), expansion nut (2 pcs.), switch, switch cover, plastic reinforcement, user manual
- Professional installation recommended
- Yes
- Warning
- Due to the complexity of the work process and the subsequent activation of the towing equipment, it is necessary to carry out the installation at authorized Škoda service partners.
- Restrictions
- Only for vehicles produced from CW28/2025. Cannot be retrofitted to vehicles without preparation -PR number 1D0. Can not be fitted on vehicles exported to Australia.
- Notice
- Technical specifications: Maximum towing weight -The weight limit for the (braked/unbraked) trailer is specified in the vehicle‘s technical certificate. Theoretical reference force (Dc - Wert) - 11,3 kN. Maximum vertical load: When using a trailer - 90 kg, When using accessories - 75 kg. Always depends on the technical parameters of the specific vehicle.
- Weight
- 25 kg
