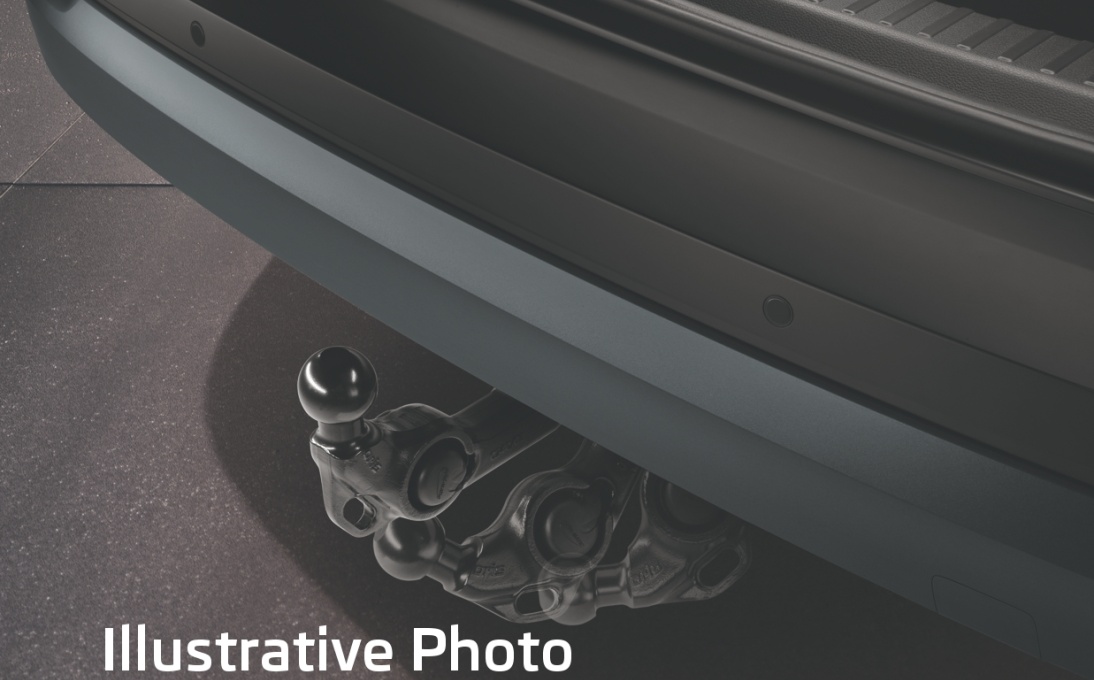

Tow bar foldable Karoq
The tow bar from the Škoda Genuine Accessories range is manufactured from high-quality materials and has undergone load tests as well as rigorous testing for strength and resistance to corrosion. It co… Read more
The tow bar from the Škoda Genuine Accessories range is manufactured from high-quality materials and has undergone load tests as well as rigorous testing for strength and resistance to corrosion. It complies with homologation and all Czech and international regulations. Features an automatic mechanism thats wivels the ball hitch in and out, please refer to the Owner's Manual for detailed instructions.
This tow bar is designed for vehicles with preparation for tow bar (1D7/1D8),UN.ECE (NI1/NI7/NI8/NI9) in equipment:
1. fixed rear seats (3NU/3NZ)
or
2. Varioflex (5KP)
For fitting must be ordered from the Škoda Genuine catalogue:
- for vehicles with standard rear seats (3NU/3NZ):
Switch 3G0959511A WHS
Switch cover 5G0868345 81U
Support 575868784
Adhesive D428000M2
- for vehicles with
Varioflex rear seats (5KP):
Switch 565959511
WHS Switch cover 565868345 9B9
Support 57A868784
Adhesive D428000M2
Technical specifications
- Product code
- 57A092160Q
- Material
- Quality steel
- Dimensions
- 1150 x 540 x 190 mm
- Content of set
- Towbar with wiring, bolts, control unit (5H2907383D), expanding nuts, bolts for attaching the control unit, fitting instructions
- Professional installation recommended
- Yes
- Usage
- Maximum vertical load: 90 kg; Maximum vertical load when using accessories: 75 kg; The maximum tow weight of the (braked / unbraked) trailer as well as the maximum vertical load on the coupling pin are specified in the vehicle‘s technical certificate.
- Restrictions
- Not applicable for vehicles without a towbar, specifies PR 1D0. Not applicable for cars exported to Australia. 27/2025.
- Notice
- Due to the complex nature of the work required, as well as the subsequent activation of the tow bar fitting must only be carried out by an authorised Škoda Auto service partner.
- Weight
- 25 kg
