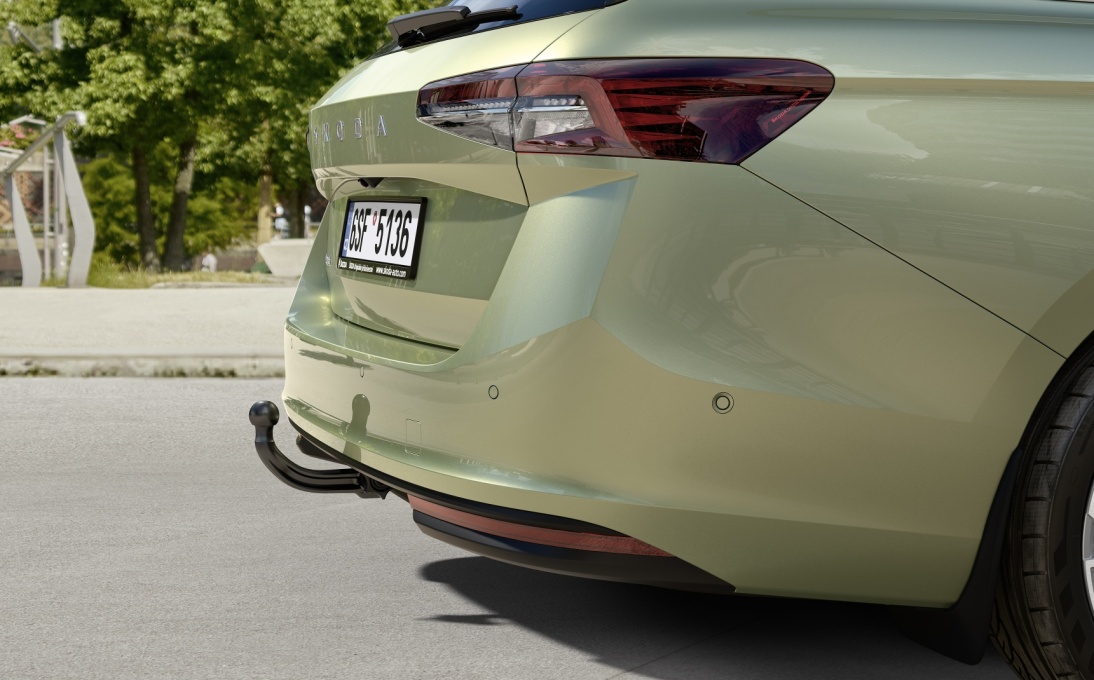

Tow bar detachable Superb IV Combi, Limo
This tow bar from Skoda Genuine Accessoires is manufactured from high-quality materials and has undergone demanding stress tests and strength and rust resistance evaluations. The tow bar conforms to th… Read more
This tow bar from Skoda Genuine Accessoires is manufactured from high-quality materials and has undergone demanding stress tests and strength and rust resistance evaluations. The tow bar conforms to the homologation and to all Czech and international standards. A simple automatic mechanism makes it possible to unfold the tow bar into its working position and then fold it back under the bumper when not in use.
This tow bar is designed for vehicles prepared for with tow bar:
1. ICE (0K0) / mHEV (0K4) with tow bar preparation (1M5) and vehicles with chassis (UB1) Sportline, (1JA) Normal, (1JC) Sport, (1JP) DCC for UN.ECE vehicles (NI1/NI7/NI8/NI9) or
2. ICE (0K0) / mHEV (0K4) with tow bar preparation (1M5) and raised chassis Hochstand (UC7) and with weight range for rear axle0YC/0YD/0YE/0YF/0YG for UN.ECE vehicles (NI1/NI7/NI8/NI9)
For installation, further parts need to be ordered from Škoda Genuine Parts catalogue (these will depend on your engine version – identify by using the PR number):
For vehicles manufactured up to CW 27/2025
- Electrical installation kit 3P0055202A (contains control unit 5H2 907383D, nuts 2x)
- Tow arm bag 8V0012007
For vehicles manufactured from CW 28/2025
- Electrical installation kit 3P0055202E
- Control unit 5E3055713
- Tow arm bag 8V0012007
For installation on the Superb IV Combi is necessary to order:
- Mounting bar for bumper 3J0807863A
Technical specifications
- Product code
- 3P0092155
- Material
- Quality steel
- Dimensions
- 1120 x 620 x 220 mm
- Content of set
- Tow bar with bracket, bolt (4 pcs),towing arm, key for the lock of the towing arm control rose (2pcs), towing arm ball pin cover, bottom clamping sleeve cover, upper clamping sleeve cover, socket holder, towing arm lock insert cover, installation instructions, user manual
- Warning
- Considering the assembly/disassembly requirements of this product and the subsequent activation of the tow bar, we recommend the installation is Towbar - detachable completed by a Škoda Auto authorized service partner.
- Restrictions
- It cannot be retrofitted to vehicles without preparation PR Nr. 1D0. It cannot be used for PHEV vehicles. It cannot be used for vehicles exported to Australia.
- Notice
- Technical specifications: Maximum towing capacity –the weight limit for the braked/unbraked trailer isstated in the car’s documents. D-value – 11.3 kN. Maximum vertical load – 90 kg; maximum vertical load for accessories – 75 kg. The values always depend on the technical specifications of the car in question.
- Weight
- 22 kg
