Tow bar - foldable Octavia IV
The tow bar from Škoda Genuine Accesories is manufactured from highquality materials, it has undergone load tests as well as rigorous testing for strength and resistance to corrosion.
The tow bar comp…
Read more
The tow bar from Škoda Genuine Accesories is manufactured from highquality materials, it has undergone load tests as well as rigorous testing for strength and resistance to corrosion.
The tow bar complies with homologation E1 55R-01 2858 and all Czech and international regulations.

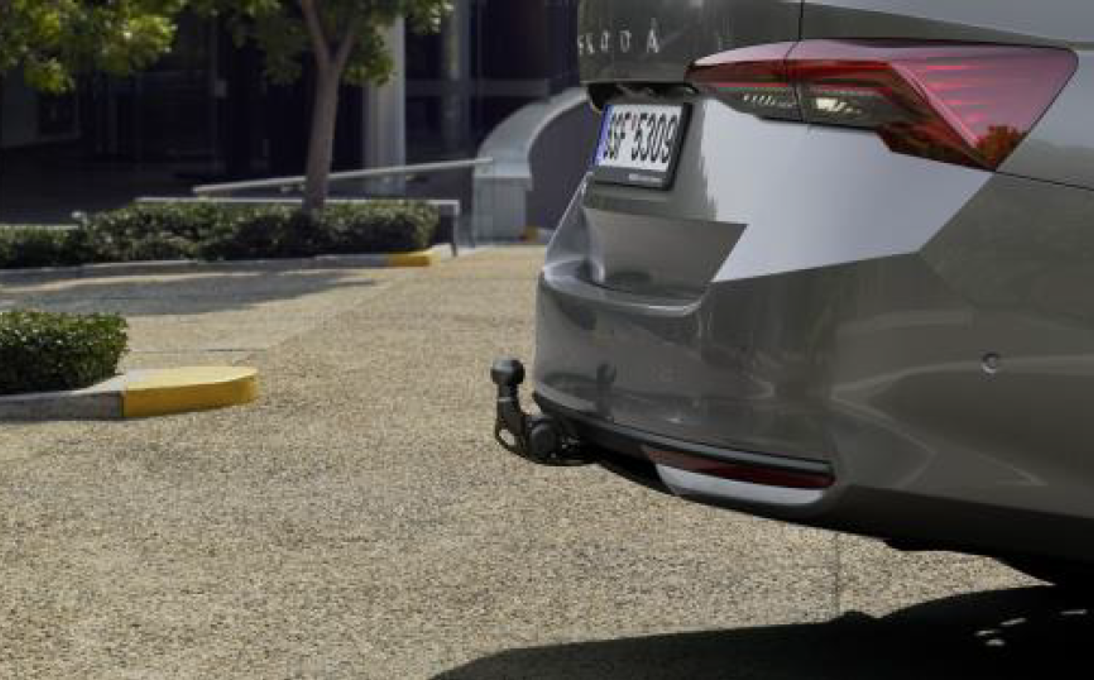

With this tow bar, a simple automatic mechanism allows the ball hitch to be swivelled out into the working position and then, when it is no longer needed, swivelled back in beneath the bumper.
This tow bar id designed for vehicles with UN.ECE (NI1/NI7/NI8/NI9):
1. ICE (0K0)/ mHEV(0K4) with preparation for tow bar (1M5)
or
2. ICE (0K0) without preparation for tow bar (1D0)
Further parts need to be ordered from Škoda Genuine Parts catalogue:
For vehicles without a tow bar preparation (1D0):
- Wiring set 5E3055204A and 5E3055204E
- Control unit 5E3055713
For vehicles with preparation (1M5)
- Control unit 5E3055713
On Octavia Combi (PV5) models not fitted with a tow bar, the rear bumper diffuser must always be replaced.
- Diffuser 5E6807521E (does not apply to Octavia RS models).
Inquiry this product at local reseller
Technical specifications
- Product code
- 5E3092160L
- Warning
- Exclusively for the basic model of left- or right-hand drive Škoda Octavia IV vehicles.
- Material
- Quality steel
- Dimensions
- 1120 x 620 x 220 mm
- Content of set
- Towbar with wiring, screws (4x), switch, switch cover, plastic nuts for attachment of control unit (2x), fitting instructions
- Professional installation recommended
- Yes
- Weight
- 21 kg
- Restritions
- This part is not possible to fitt it to hybrid vehicles Octavia (PHEV). Can not be fitted on vehicles mHEV motorization without a tow bar preparation. Can not be fitted on vehicles exported to Australia. Can be fitted on vehicles manufactured from CW28/2025.
- Notice
- Technical specifications: Maximum towing capacity – the weight limit for the braked/unbraked trailer is stated in the vehicle’s documents. D-value – 11.3 kN. Maximum vertical load – 80 kg. Maximum vertical load for accessories – 75 kg. The values always depend on the technical specifications of the vehicles in question.
