Tow bar - foldable - Australia
The tow bar from Škoda Genuine Accesories range makes it easy to attach a trailer or bike carrier.
This increases the utility value of the vehicle and extends its possibilities of use.
This increases…
Read more
The tow bar from Škoda Genuine Accesories range makes it easy to attach a trailer or bike carrier.
This increases the utility value of the vehicle and extends its possibilities of use.
This increases the utility value of the vehicle and extends its possibilities of use.
The device has undergone stress tests and is corrosion-resistant.
The tow bar complies with homologation and all Czech and international regulations.

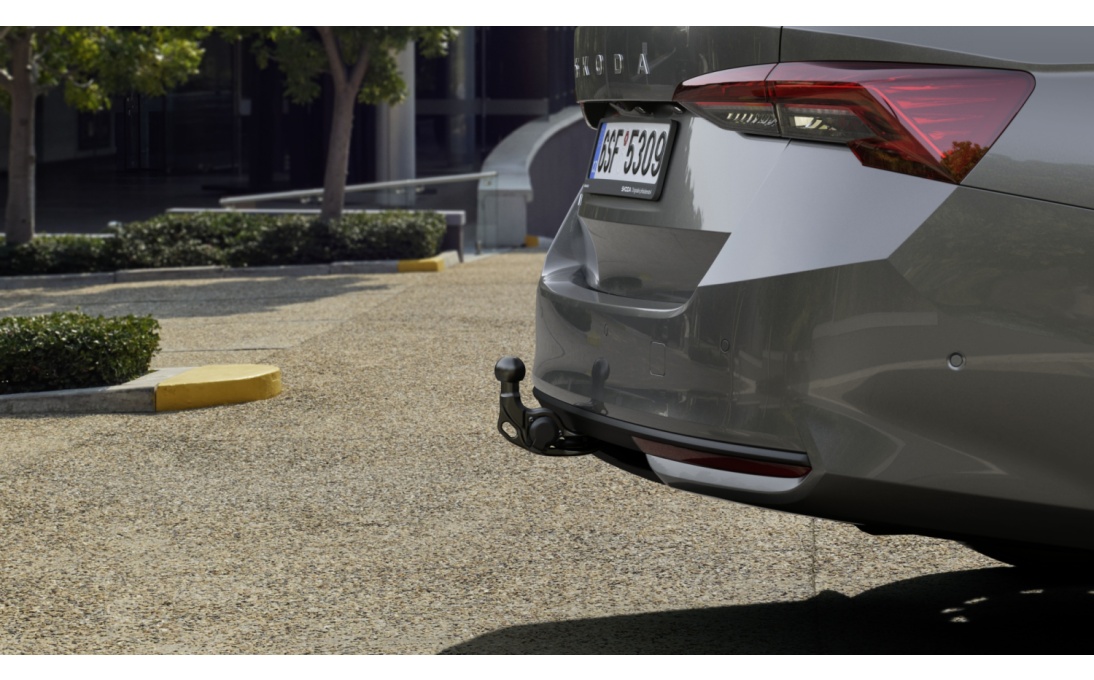

With this tow bar, a simple automatic mechanism allows the ball hitch to be swivelled out into the working position and then, when it is no longer needed, swivelled back in beneath the bumper.
This towing bracket is designed for vehicles equipped with UN.ECE (NI1/NI7/NI8/NI9):
1. ICE (0K0) / mHEV (0K4), with preparation for towing bracket (1M5) or
2. ICE (0K0), without preparation for towing bracket (1D0)
For fitting must be ordered from the Škoda Genuine catalogue:
For vehicles without preparation (1D0)
Control unit 5E3 055 713
Set for electrical installation for tow bar 5E3 055 204A and 5E3 055 204E
For vehicles with preparation (1M5)
Control unit 5E3 055 713
For Octavia Combi (PV5) without tow bar preparation the rear bumper
diffuser must be replaced:
Diffuser 5E6 807 521E (not applicable to Octavia RS model)
Technical specifications
- Product code
- 5E3092160M
- Dimensions
- 1120 x 620 x 220 mm
- Content of set
- Towbar with wiring, screws (4x), switch cover, switch, plastic nuts for attachment of control unit (2x), production labels for towbar 5E3 092 190B (constr.no.5E3010001B) and 5E3 092 190C (constr. no. 5E3 010 521B), fitting instructions
- Restrictions
- This part is not possible to fitted to hybrid vehicles, specifically for PHEV. Can not be fitted on vehicles mHEVmotorization without a tow bar preparation. Can not be fitted on vehicles exported to Australia. Only for vehicles manufactured from CW 28/2025.
- Notice
- Maximum towing capacity – the weight limit for the braked/unbraked trailer is stated in the vehicle’s documents. D-value – 11.3 kN Maximum vertical load – 80 kg Maximum vertical load for accessories – 75 kg The values always depend on the technical specifications of the vehicle in question.
- Weight
- 21 kg
