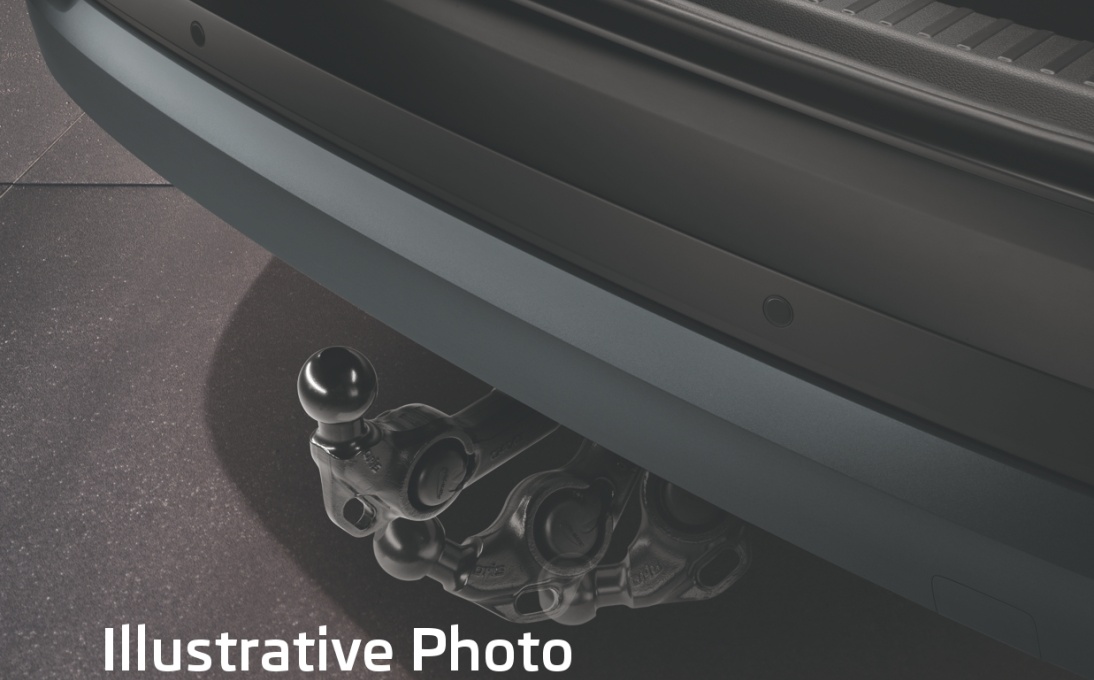

Tow bar - foldable - Australia
The tow bar from Škoda Genuine Accessories is manufactured from highquality materials and has undergone load tests as well as rigorous testing for strength and resistance to corrosion.
It complies with… Read more
The tow bar from Škoda Genuine Accessories is manufactured from highquality materials and has undergone load tests as well as rigorous testing for strength and resistance to corrosion.
It complies with homologation and all regulations.
Features an automatic mechanism that swivels the ball hitch in and out, please refer to the Owner's Manual for detailed instructions.
This tow bar is designed for vehicles with preparation for tow bar (1D7/1D8), UN.ECE (NI1/NI7/NI8/NI9) in equipment:
1.fixed rear seats (3NU/3NZ)
or
2.Varioflex (5KP)
For fitting must be ordered from the Škoda Genuine catalogue:
- for vehicles with standard rear seats (3NU/3NZ):
- Control unit 5E3 055 713
- Switch x 1 3G0 959 511A WHS
- Switch cover x 1 5G0 868 345 81U
- Support x 1 575 868 784
- Adhesive x 1 D 428 000 M2
- for vehicles withVarioflex rear seats (5KP):
- Control unit 5E3 055 713,
- Switch x 1 565 959 511 WHS
- Switch cover x 1 565 868 345 9B9
- Support x 1 57A 868 784
- Adhesive x 1 D 428 000 M2
Technical specifications
- Product code
- 57A092160AC
- Material
- High strength steel
- Dimensions
- 1150 x 540 x 190 mm
- Content of set
- Towbar with wiring, bolts, expanding nuts, bolts for attaching the control unit, production label for towbar 57A 092 190A, fitting instructions
- Warning
- For right-hand drive vehicles only.
- Restrictions
- Not applicable for vehicles without preparation for a towbar - PR 1D0. Only for vehicles exported to Australia. Can be fitted on vehicles manufactured from CW 28/2025.
- Notice
- Maximum vertical load: 90 kg Maximum vertical load when using accessories: 75 kg The maximum tow weight of the (braked / unbraked) trailer as well as the maximum vertical load on the coupling pin are specified in the vehicle's technical certificate.
- Weight
- 25 kg
