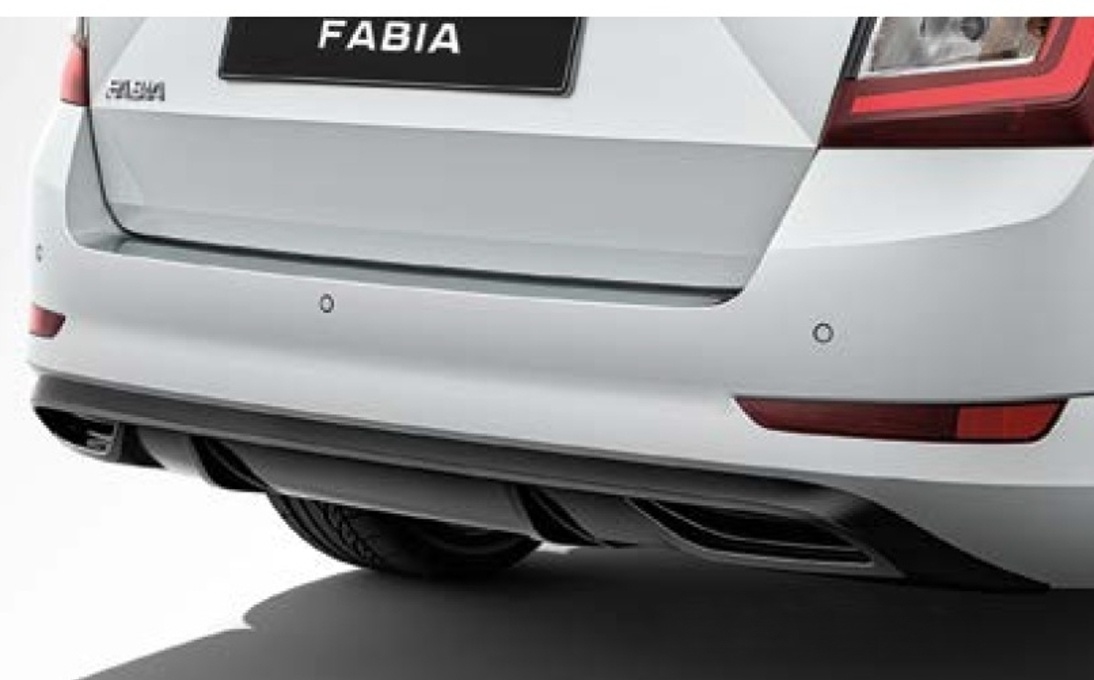

Rear diffuser Fabia III
Rear diffuser improves the vehicle's driving stability and handling at higher speeds.
Diffusers make for an attractive accessory, lending your vehicle an un-mistakeably sporty air.
Rear diffuser:
- acts as an aerodynamic enhancement that improves the air flow behind the vehicle,
- improves t … Read more
Diffusers make for an attractive accessory, lending your vehicle an un-mistakeably sporty air.
Rear diffuser:
- acts as an aerodynamic enhancement that improves the air flow behind the vehicle,
- improves the vehicle's driving stability and handling at higher speeds,
- is manufactured from high-quality polyurethane,
- is supplied by the manufacturer without its surface finish (it is ready to be painted),
- is secured to the surface of the rear bumper using Betamate adhesive sealant, screws and speed nuts.
For fitting, the following items must be ordered from the Škoda Original Components catalogue:
- Screw (x 2) / N90974701
- Speed nut (x 2) / N90959101
The following from the Dow range is also required in accordance with the workshop's practices:
- Betamate 2810 adhesive sealant / Betawipe 4000 activator.
Technical specifications
- Product code
- 6V9071610F
- Color
- Ready to be painted.
- Material
- Polyurethane
- Content of set
- Diffuser, fitting instructions.
- Professional installation recommended
- Yes
- Weight
- 1,36 kg
- Restrictions
- Only for Fabia Combi vehicles without a tow bar in the equipment specification. For safety reasons, the rear diffuser can only be fitted in conjunction with the front bumper spoiler / 6V0071606E and the 5th door spoiler / 6V9071644. In the event that the vehicle is involved in a traffic accident, the damaged part must always be replaced (or, if appropriate, repaired). Then a new diffuser can be fitted.
- Notice
- Due to the complex nature of the work required to adhere the diffuser, we recommend having this work carried out by an authorised Škoda Auto service partner. The vehicle cannot be returned to the customer until the time required to allow the adhesive sealant to dry fully has passed.
Designed for:
Fabia III (2014+)
