iV Universal Charger
Quick and easy charging straight from the electric outlet is made possible by the iV Universal Charger from the Škoda Genuine Accessories range. This allows you to make use of even more of your electri… Read more
Quick and easy charging straight from the electric outlet is made possible by the iV Universal Charger from the Škoda Genuine Accessories range. This allows you to make use of even more of your electric vehicle’s advantages: on top of the environmentally friendly and economical operation, you can charge it almost anywhere, be it at home, at work or at your vacation home. The ergonomic handle allows for easy manipulation and you can monitor the charging status on the dashboard of your car.
The iV Universal Charger is designed for home charging using either a 230 V industrial outlet or common EU household outlet. Using the red adapter for industrial 230 V / 32 A outlet enables you to charge at the maximum speed of 7.2 kW, and using the home outlet adapter 230 V / 10 A makes it possible to charge at 2.3 kW.

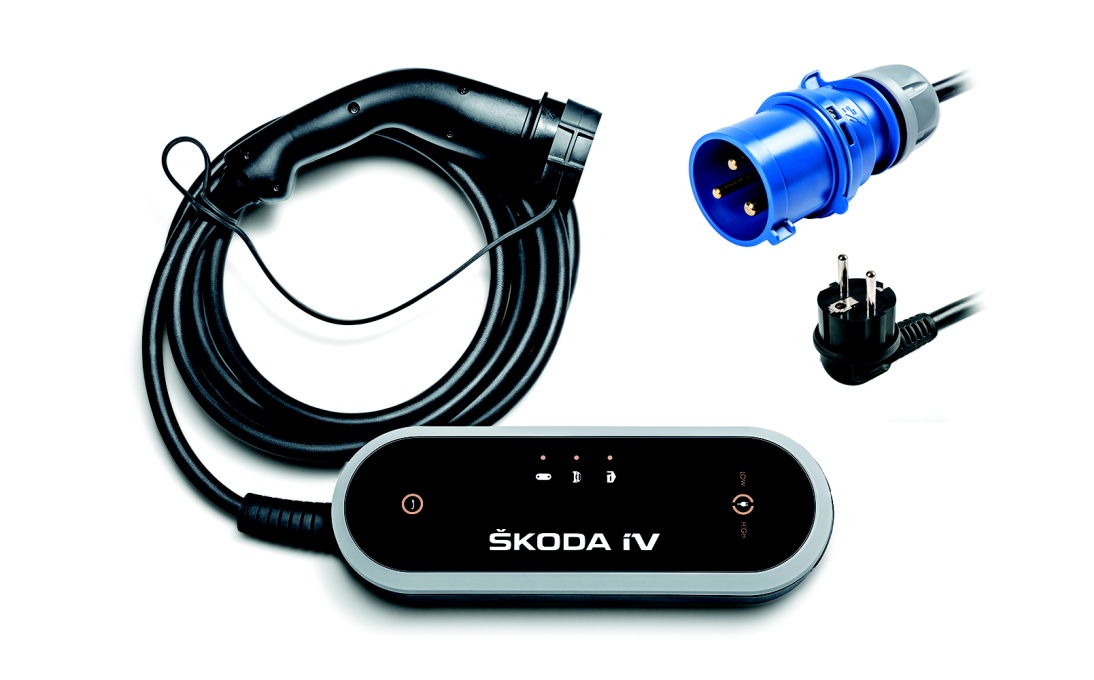

The iV Universal Charger consists of three parts:
- control unit, cable with connector for connection to the vehicle
- 32 A / 230 V industrial adapter, charging speed up to 7.2 kW
- home adapter for common 230 V outlet
To easily store the cables in the boot of your car, you can order a special charging cable case 5LA087317B which protects them from dust or damage. When going abroad, it is advisable to check whether the cable is suitable for charging in a given country, or use the proper adapter.
You can also order adapters for various countries: Norway/Finland - 7PP 971 678 DF
Switzerland - 7PP 971 678 BK
Great Britain - 7PP 971 678 BL
Italy - 7PP 971 678 CA
Denmark - 7PP 971 678 DK
You will find a detailed description of the iV Universal Charger in the car’s owner’s manual.
Inquiry this product at local reseller
Technical specifications
- Product code
- 5LA054412A
- Material
-
Metal
Plastic
Rubber - Content of set
- Integrated charging cable 7.2 kW, industrial adapter, home adapter
- Weight
- 3,5 kg
- Maintenance
- Maintenance free - if necessary, wipe the charging cable with dry or slightly wet cloth. Do not use abrasive cleaners, waxes or chemical solvents.
- Warning
- Recommendation - regular checking by qualified service technician.
- Restritions
- Only for electric cars and cars with Plug-in Hybrid technology.
Designed for:
Notice
Technical specifications:
- power output: 7.2 kW
- charging: 1-phase 32A
- voltage: 220 V/230 V
- current: 10 A/32 A
- car connector: Typ 2
- charging connector: standard EU outlet, industrial outlet 230 V/32 A
- Type of protection: IP55 (NEMA3)
- Overvoltage category: II
- Integrated residual current device: Typ A (30 mA) + ss.: 6 mA
- Protection class: I
- cable overall length approx. 6 m
